Navarro leads a GE team that is helping build France’s first subsea tidal power plant for Electricité de France (EDF), near Paimpol-Brehat, in Brittany. When completed at the end of this year, it will generate 1 megawatt of renewable power and feed it through a 10-mile-long (16 kilometers) underwater cable to the local grid.

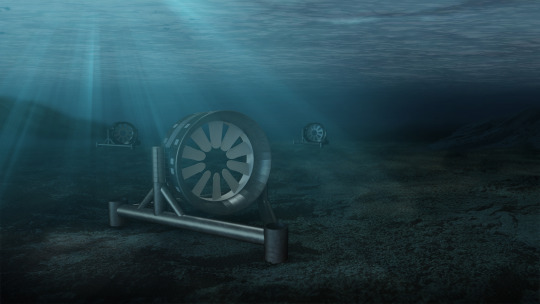

Above: A drawing of EDF’s tidal array off the coast of Brittany. The turbines were made by OpenHydro. GE technology will transform the current and send it to the grid. Image credit: OpenHydro Top Image: EDF’s subsea turbine during testing. Image credit: EDF
As the tides move in and out, they will spin two huge turbines measuring 16 meters in diameter and sitting 35 meters below the sea level. The turbines generate electricity with direct-drive permanent magnet generators and send it for processing to a subsea converter. Navarro calls it the “yellow submarine” because of the way it looks. “It works just like dropping a wind turbine to the bottom of the ocean and using water to move the blades,” says Navarro. “It’s that simple.”
The French island of Brehat is famous for its dramatic and fast moving tides.
The idea might be simple, but the execution takes some serious skills. The turbines, made by OpenHydro, a DCNS subsidiary specializing in the design, manufacture and installation of marine turbines, are so large they have to be assembled in a dry dock in the port of Brest and deployed using a custom built barge.
In the dock, they will be coupled with the “yellow submarine,” built by GE Power Conversion at GE Power & Water’s massive factory in Belfort. But it just happens that Belfort is the most geographically distant town from any coast in France. So last week, the company loaded the subsea vessel on a customized flatbed truck for the 650-mile long journey to Brest.

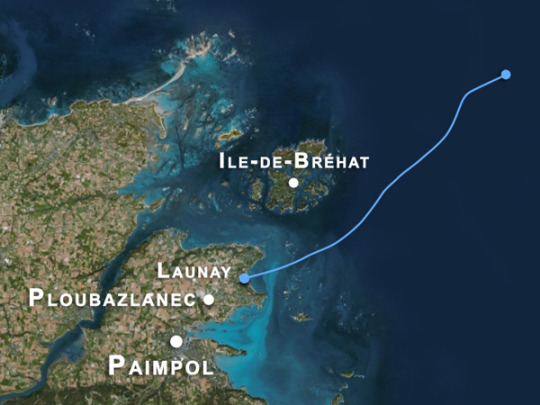

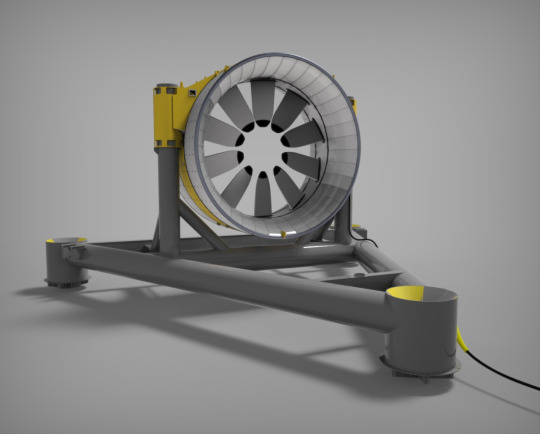

The turbines, which are 16 meters (52 feet) in diameter, will sit 35 meters (115 feet) below the sea level and 16 kilometers (10 miles) off the coast. Image credit: OpenHydro
Navarro says the “yellow submarine,“ which is 9 meters long and 5 meters wide, will be “the brain” of the whole tidal array that decides how the turbine should move (see below). The technology inside will control the rotation of the turbines and optimize the power produced generators according to the speed of the tides. “There is a lot of complex engineering that takes place behind the yellow walls,” he says.
For example, it holds sophisticated technology that can independently control the speed of each turbine, transform their variable AC voltages to a high DC voltage, and reduce losses along the 16km subsea cable.

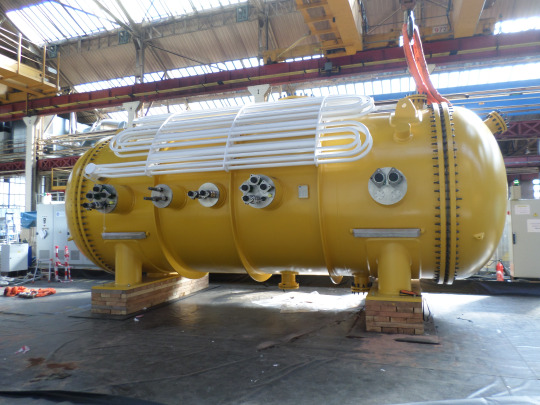

GE’s yellow submarine contains power technology, nitrogen, and special transformer liquid more expensive than olive oil. Image credit: GE Marine
The current’s journey is anything but ordinary. When it first enters the “yellow submarine,” it travels through a chamber filled with nitrogen. “This allows us to remove any moisture and oxygen and prevent corrosion,” Navarro says.
The current then flows to an enclosure filled with special transformer oil. Made by Midel, the ester-based fluid has been custom-designed to protect the environment in case of a leak. “This stuff is more expensive than the best olive oil,” Navarro says.
Finally, the current travels to an onshore sub-station where another piece of GE technology transforms it again, so it can be connected to the French electrical grid (see below).
DCNS and OpenHydro will assemble the turbines and the GE equipment in Brest and then tow them via barge to Paimpol-Brehat some 200 kilometers away.
That’s when some of the hardest work will begin. “Naturally, tidal arrays go to places where there are strong currents,” Navarro says. “But these currents also make such locations a tough place to work.”
OpenHydro will use specially trained divers to install the equipment some 35 meters below the surface. “The divers will be only able to work during certain times of the day, when the conditions aren’t dangerous,” Navarro says. The partners expect the array to start producing power by the end of the year.

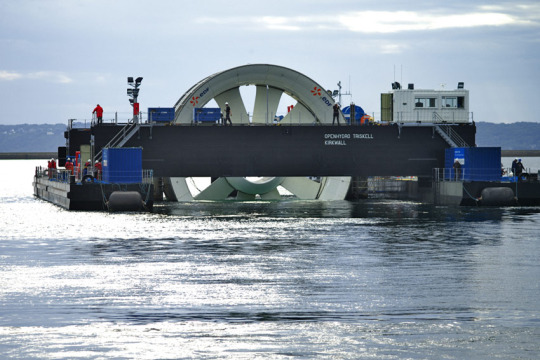

A subsea turbine during tests. Image credit EDF
France is far from being a tidal power newbie. In 1966, the country opened the world’s first tidal power station inside a bridge spanning the River Rance, in Brittany. Just like Paimpol-Brehat, the plant is currently operated by EDF.
Likewise, Paimpol-Brehat is not the only tidal project involving GE. In February, the company said it would supply technology for a massive, 320-megawatt tidal lagoon off the coast of Wales.
“Not too long ago, tidal power seemed like science fiction,” Navarro says. “But today, we’ve started unlocking the potential of tidal energy around the world.”
