Galaxy Quest: We Went Inside A Plane Large Enough To Carry A Tank Around The World

Tomas Kellner
July 27, 2016
The latest model of the gigantic C-5 Galaxy military transport jet galumphed into the Oshkosh fly-in on Tuesday. The plane, which was the world’s largest aircraft when it first took off in 1968, helped launch GE’s commercial aviation business.
The jet’s first engines, called the TF39, used a design called a high-bypass turbofan, which placed a big fan up front to generate thrust in combination with a jet. GE had to test the engines on a B-52 bomber, the closest plane in size to the gigantic C-5, which can lift 130 tons of cargo and has a range of 5,000 miles at 500 miles per hours.

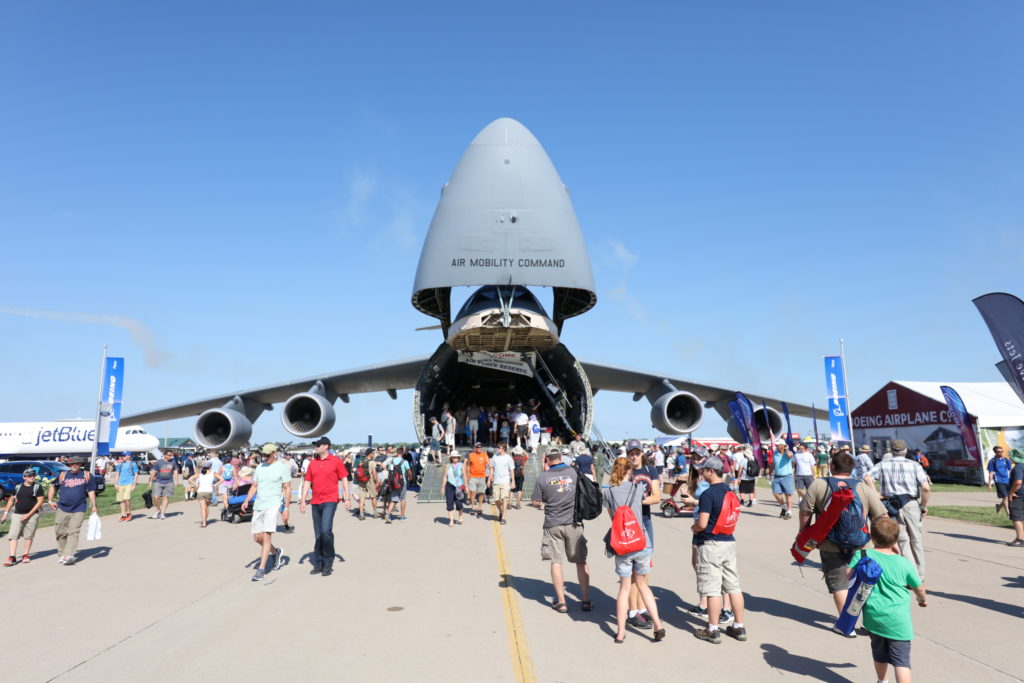

galaxy openIMG_0355 The C-5 jet is the largest transport plane in the Air Force fleet.

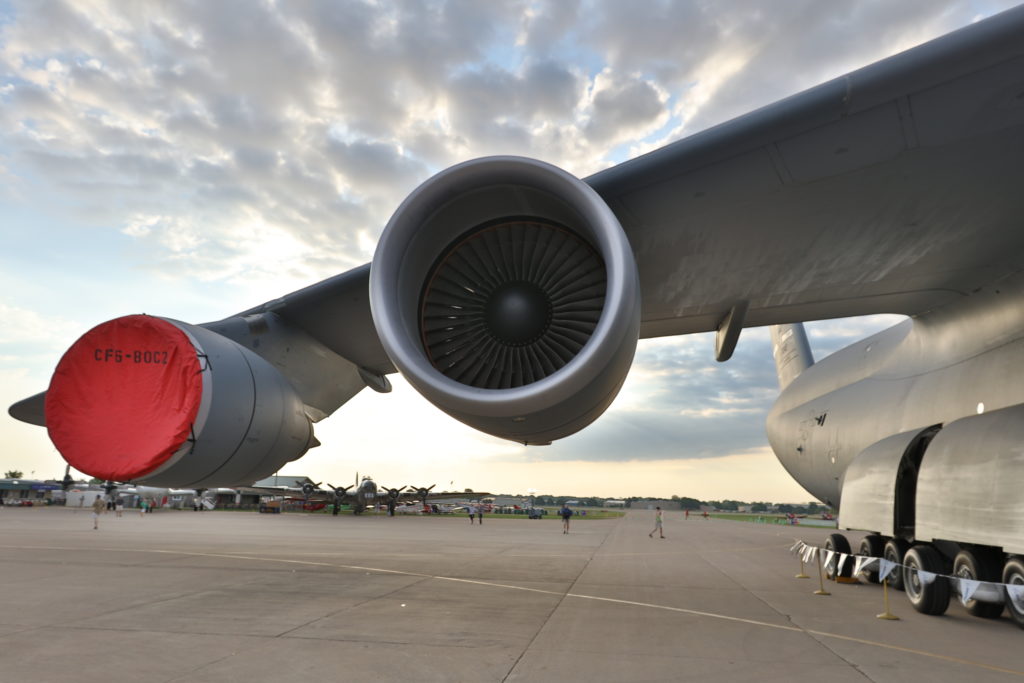

galaxyCF6IMG_0483 A pair of GE CF6 jet engines powering the latest generation of the C-5 Galaxy planes, the C-5M Super Galaxy.

Today, virtually every mid-size and large commercial plane uses the same engine design, but back then, the TF39 was revolutionary. It allowed GE engineers to boost the engines’ thrust to 40,000 pounds each and cut fuel burn by a quarter compared other engines in use at the time

GE quickly saw the commercial potential and built a passenger version called the CF6. It first flew in 1971, and today, it is one of the most common jet engines in the world, powering all makes of planes, from Boeing 747 jumbos—including President Obama’s  Air Force One—to Airbus long-haul jets and Beluga cargo lifters. GE has delivered more than 7,000 of them to 250 airlines in 87 countries. The newest versions on the engine are expected to fly until 2040.

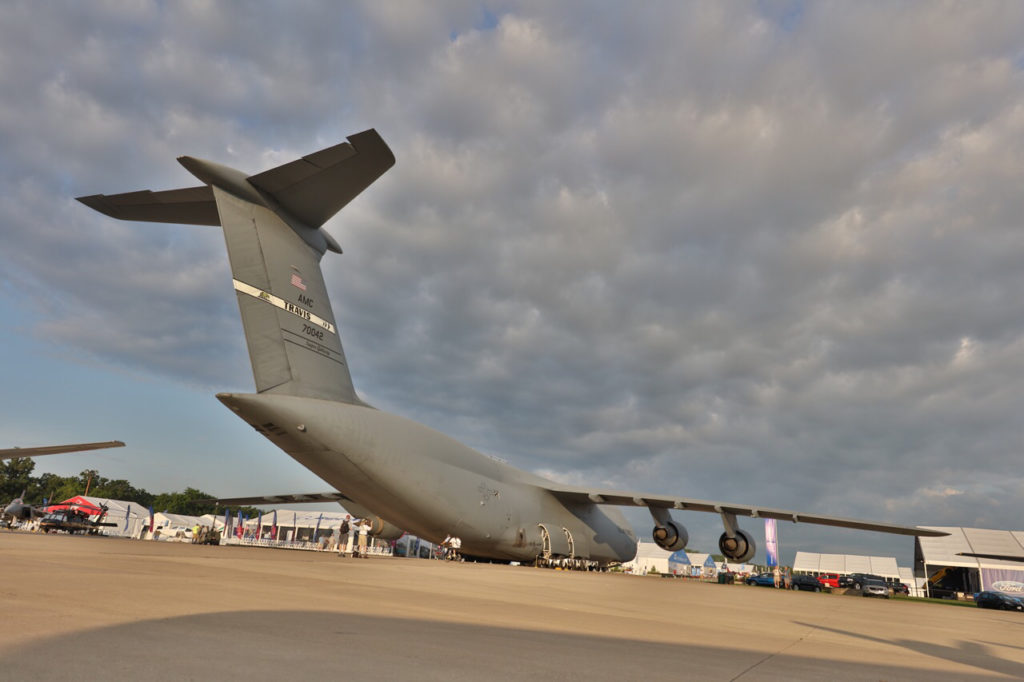

GalagyJPEG image-529375BC1684-1 When it flew for the first time in 1968, the C-5 Galaxy was the world's largest plane.

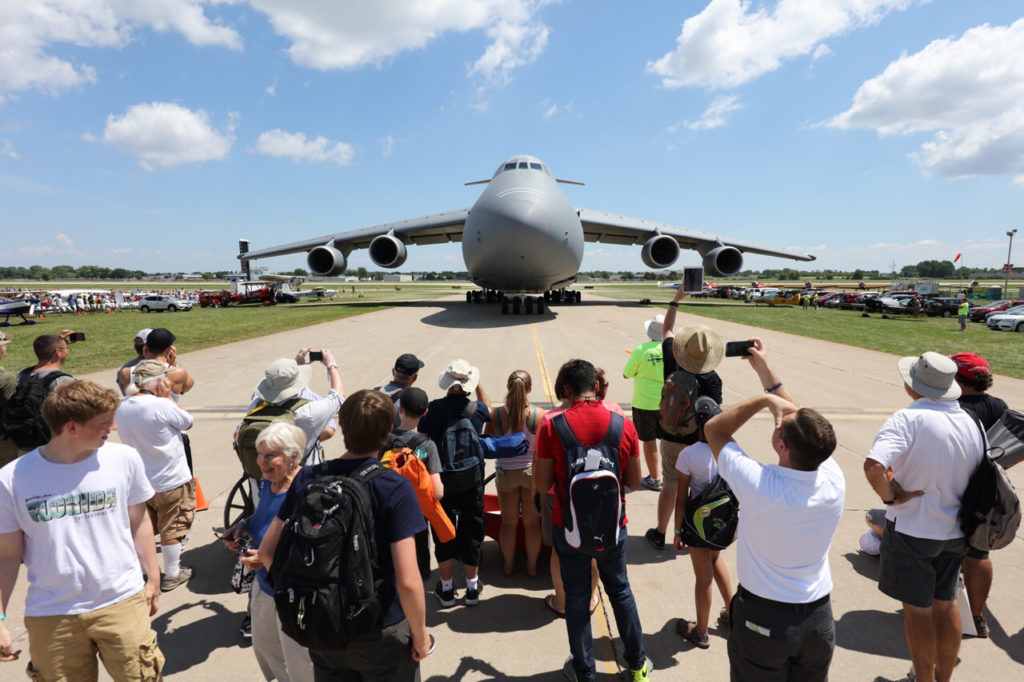

galaxyJPEG image-92B7385C1EFB-18 Thousands of people came to see the plane at Oshkosh on Tuesday.

The plane that landed in Oshkosh—the C-5M Super Galaxy—was delivered to the Travis Air Force Base in California in 2014 and uses a military version of the CF6 engine. It allows the plane to use less runway and take off faster compared with the original TF39.

But jet engine evolution didn’t stop with the CF6. GE engineers used their knowledge to build the GE90, the world’s most powerful engine with thrusts of up to 127,500 pounds, the GEnx for the Boeing Dreamliner and 747-8 jumbo, and the GE9X, the world’s largest engine developed for Boeing’s next-generation 777X plane.

New materials such as carbon fiber composites for fan blades and fan cases, and modern designs cut weight by hundreds of pounds and boosted thrust. The latest engines like the GE9X and the LEAP, developed by CFM International—a joint venture between GE and France’s Safran Aircraft Engines—even use 3D-printed parts and space-age ceramic composites. “Four decades from now, we could be printing an entire engine this way,” said Michael Idelchik, former vice president for advanced technologies at GE Global Research, who was involved in the research.

While at Oshkosh, we took a close look at the Galaxy and its engines. Here’s the haul.

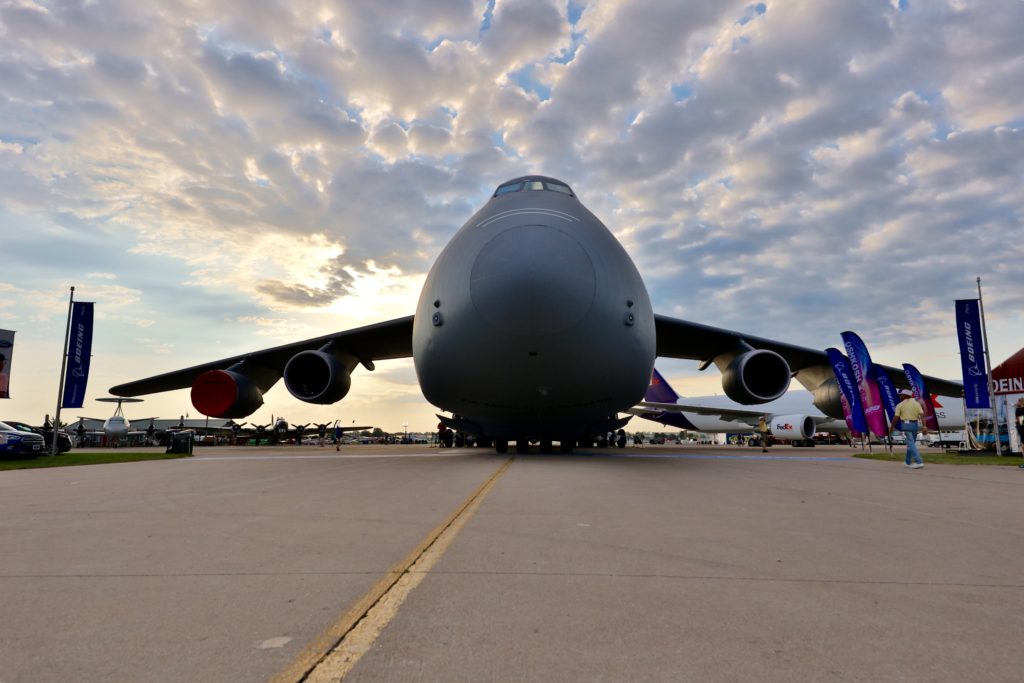

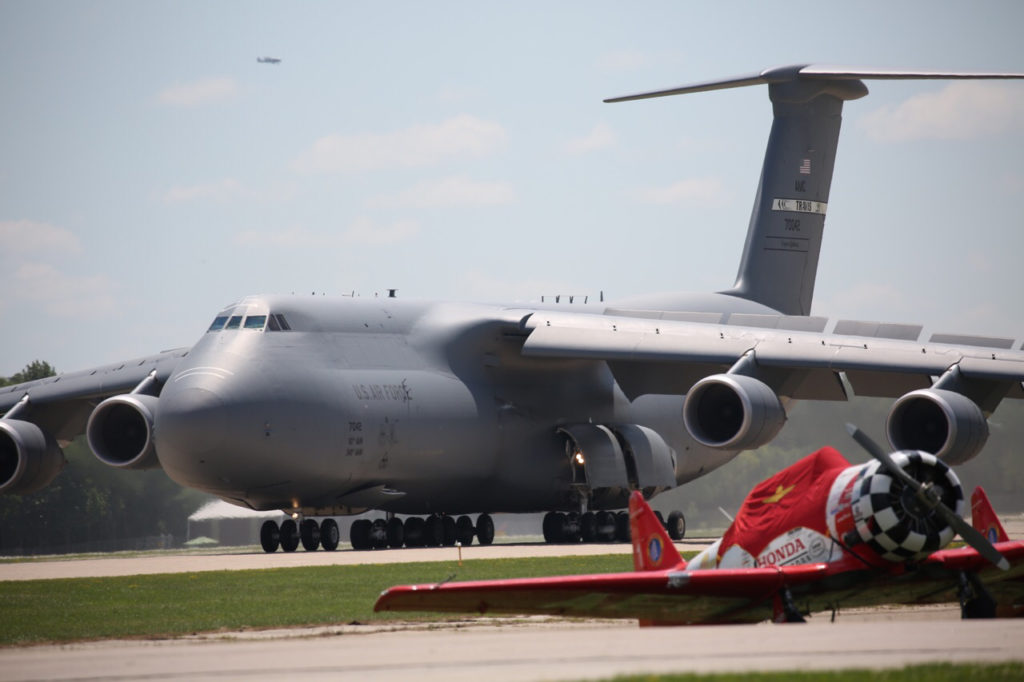

JPEG image-077265692DB3-5 The gigantic C-5 Galaxy military transport jet galumphed into the Oshkosh at noon on Tuesday. The plane distributes its weight over five sets of landing gear with 28 wheels.

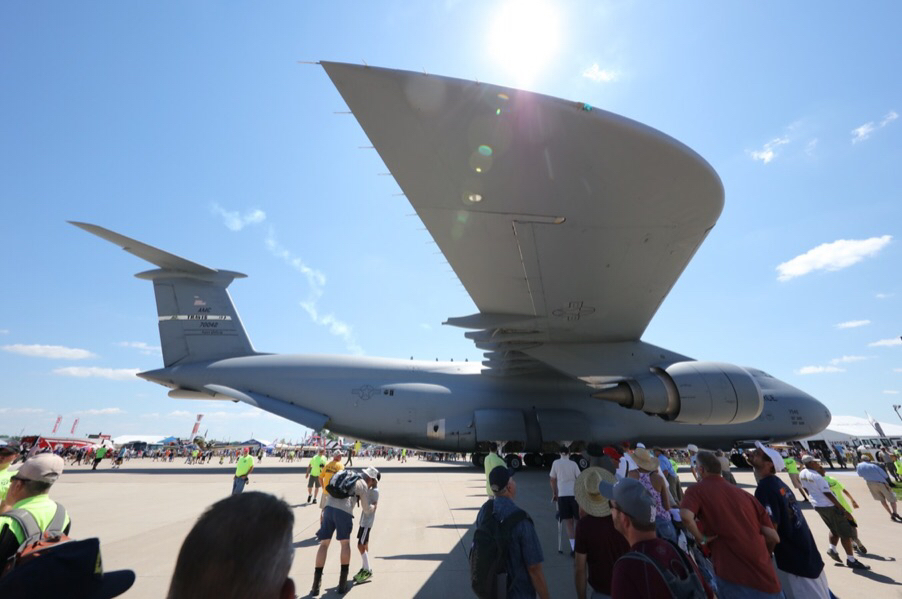

GalaxyJPEG image-7062284D0128-3 The new engines produce more than 50,000 pounds of thrust each – a 22 percent increase over the TF39 engines on the first plane.

GalaxyJPEG image-7062284D0128-4

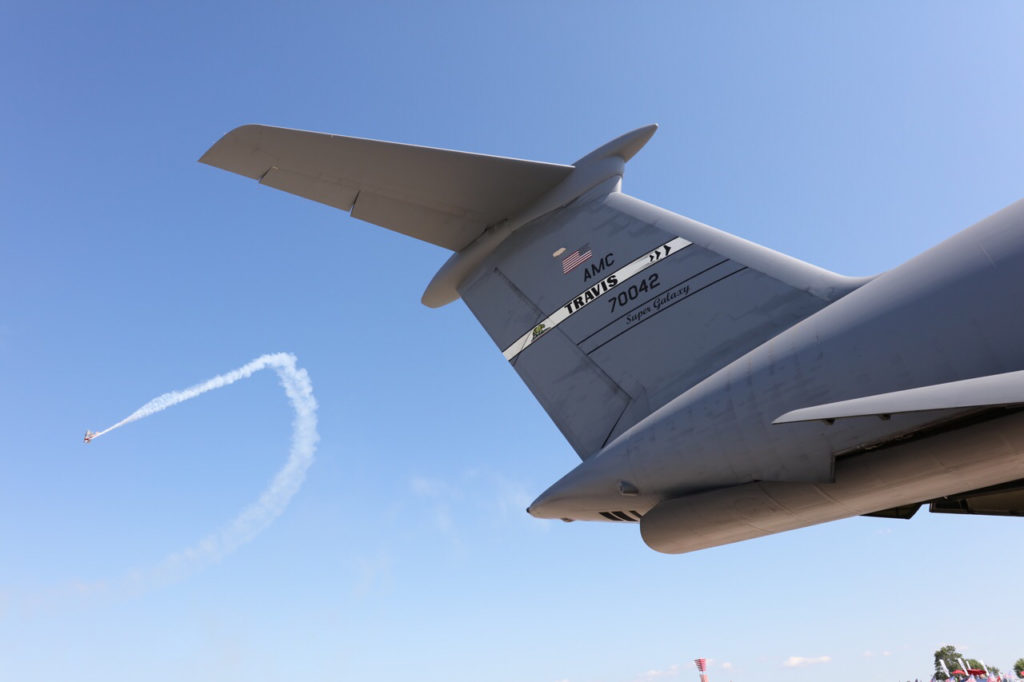

Jbestgalaxy tail shotPEG image-92B7385C1EFB-13 The C-5M flew to Oshkosh from the Travis Air Force Base in California. According to Lockheed, the plane "has a 58 percent greater climb rate to an initial cruise altitude that is 38 percent higher than the current C-5. This capability delivers fuel savings greater than 20 percent compared to other airlifters."

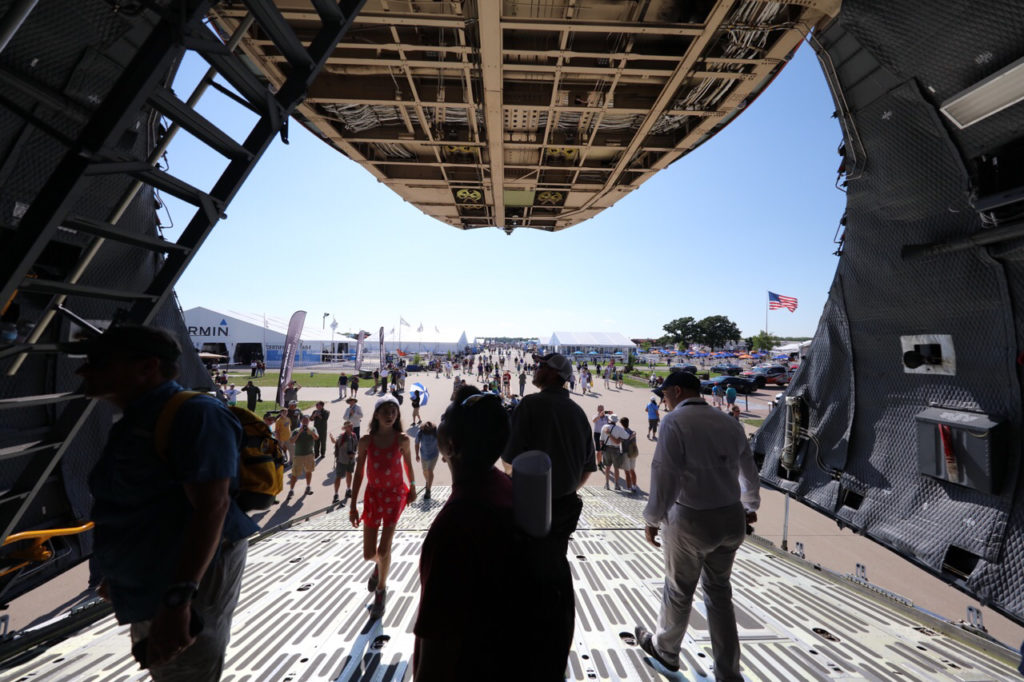

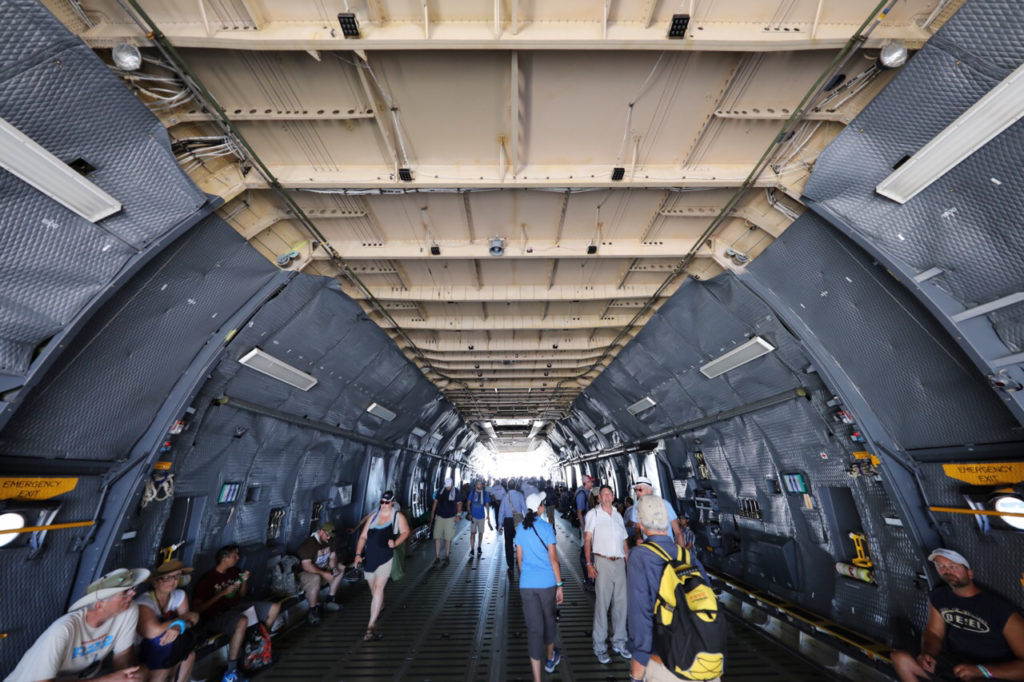

galaxy The cargo hold of the C-5M. Loaded with 270,000 pounds (122,472 kilograms) of cargo, the plane can cover 2,150 nautical miles.

galaxyJPEG image-92B7385C1EFB-16
